For a typical DIY low-voltage landscape lighting project, prepare:

• Low-voltage landscape light fixtures
• Outdoor-rated low-voltage transformer
• Direct-burial landscape lighting cable
• Waterproof direct-burial wire connectors
• Wire stripper/cutter
• Screwdrivers
• Tape measure
• Small shovel or trenching spade
• Landscape marking flags
• Outdoor GFCI-protected receptacle
• Digital multimeter or voltmeter
• Optional cable staples or conduit where appropriate

Before buying cable, first design the system. The number of fixtures, their wattage, and their distance from the transformer determine how much cable you need and what gauge makes sense.

Do not start by spacing lights evenly around the yard.

Start by walking outside after dark and identifying the areas that need light.

For example:

Walkways and steps
Use path lights to make changes in elevation and walking surfaces easier to see.

Trees
Use directional spotlights or in-ground well lights to uplight the trunk and canopy.

House architecture
Use spotlights or floodlights to highlight columns, stonework, textured walls, or other architectural features.

Garden beds
Use path lights for broad downward illumination or small spotlights for specimen plants.

Driveway edges
Use carefully positioned path or in-ground lights without creating excessive glare for drivers.

A common beginner mistake is trying to illuminate every square foot of the property. Landscape lighting usually looks better when you create selected areas of light separated by darker areas.

Take the fixtures outside during daylight and temporarily place them where you think they should go.

Do not bury them yet.

Use marking flags if you have not purchased the fixtures.

Then check the layout from the places where you will actually see it:

• Front door
• Driveway
• Street
• Patio
• Living-room windows
• Backyard seating area

This is especially important with spotlights.

A spotlight that looks correctly positioned while you are standing beside it may create unpleasant glare when viewed from the patio.

Try to position directional fixtures so you see the lighting effect rather than the LED or bulb itself. Using glare shields and keeping the light source out of the normal viewing angle makes the finished installation much more comfortable. (voltlighting.com)

Don't create a “runway”

Another common mistake is putting path lights directly opposite each other at perfectly equal intervals.

The path remains illuminated, but the result usually looks much more natural.

Now write down the wattage of every lamp or integrated LED fixture.

For example, imagine your project contains:

Your installed lighting load is therefore:

52 watts

Do not choose a transformer by counting fixtures alone.

Ten 3W fixtures and ten 8W fixtures create very different loads.

The transformer is the power center of the landscape lighting system.

It takes standard household power and supplies the low voltage required by your landscape lights. (kichler.com)

Your transformer's rated capacity needs to be higher than the total lighting load.

For a 52W system, a 150W transformer provides considerably more capacity than the system currently requires.

That extra capacity is useful because it:

• Keeps the transformer from operating continuously near its maximum rating
• Gives you room to add lights later
• Makes future changes to the landscape easier

A useful planning practice is to keep some unused transformer capacity rather than designing the system to consume 100% of its rating. Some landscape-lighting manufacturers recommend planning around approximately 80% of transformer capacity. (voltlighting.com)

For example:

150W transformer × 80% = 120W planned working capacity

Your 52W example system is comfortably within that range.

A practical rule

If you think your yard will eventually expand from:

12 lights → 18 lights

do not necessarily buy a transformer sized only for today's 12 fixtures.

Consider future lighting before choosing it.

The transformer should be located near a suitable outdoor electrical receptacle and in a location permitted by its installation instructions.

Ideally, it should also be reasonably central to the lighting system.

Why?

Because cable distance matters.

If your transformer is mounted at one extreme corner of the house and almost every fixture is 100–150 feet away, you make voltage-drop management unnecessarily difficult.

A more central transformer position may allow you to create several shorter cable runs instead.

Always follow the transformer's installation manual and applicable local requirements for mounting location, clearances, receptacles and outdoor wiring.

Never connect household 120V wiring directly to low-voltage landscape fixtures.

If adding, relocating, or modifying a 120V receptacle is required, that portion of the project is different from simply installing the low-voltage side of the system and may be better handled by a qualified electrician.

This is one of the most important steps homeowners often skip.

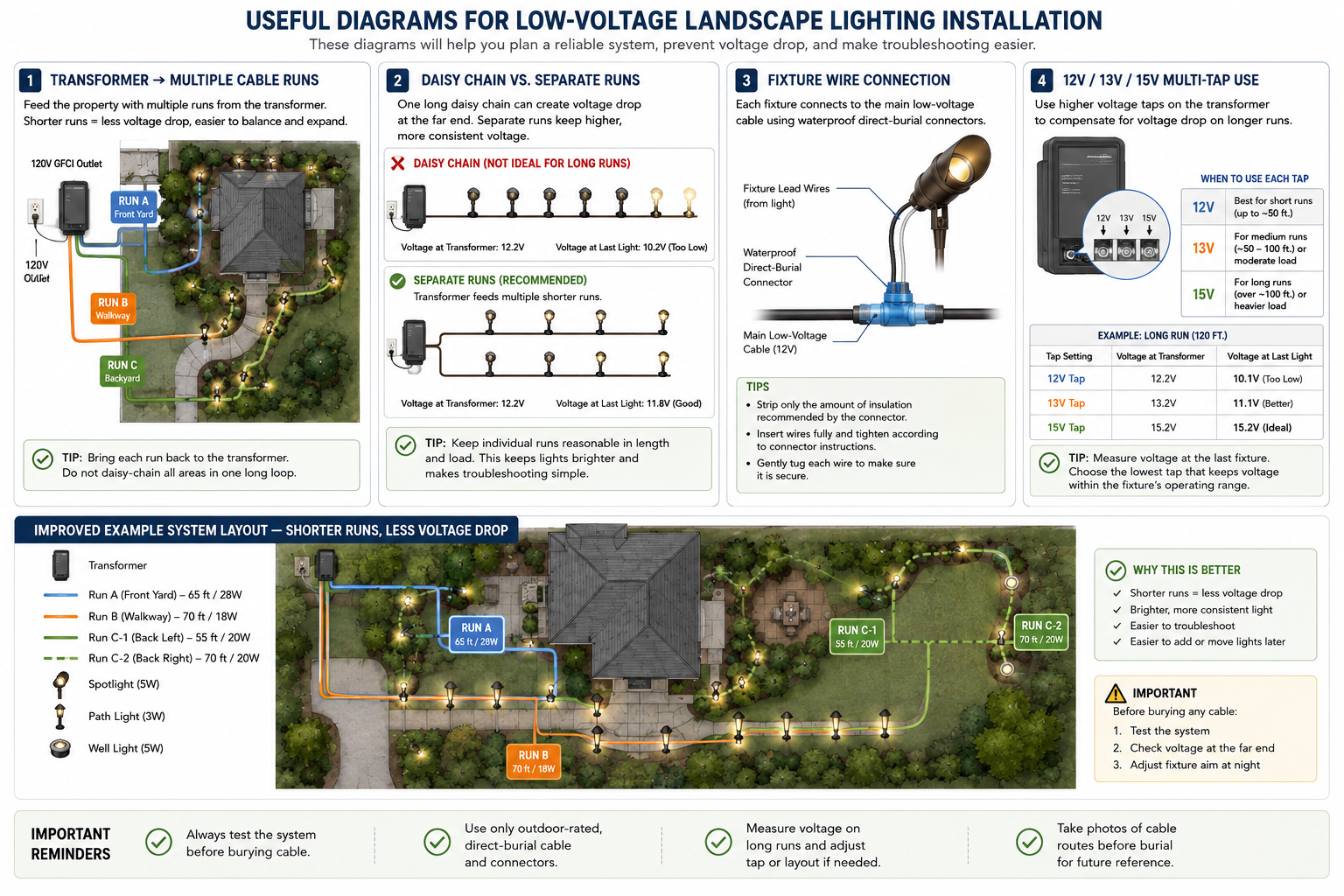

You do not need one giant cable loop containing every light.

Suppose your transformer is beside the garage and you have:

• 4 lights in the front yard
• 4 lights along the walkway
• 4 lights in the backyard

A better layout may be:

Each run returns independently to the transformer terminals.

This makes the system:

• Easier to troubleshoot
• Easier to expand
• Easier to balance
• Less vulnerable to excessive voltage drop

It can also be useful to group fixtures with similar distances from the transformer onto the same cable run. (voltlighting.com)

Landscape lighting cable commonly comes in sizes such as:

• 16/2
• 14/2
• 12/2
• 10/2

The first number represents the conductor gauge.

Here is the part that sometimes confuses beginners:

A smaller AWG number means a thicker conductor.

So:

12 AWG is thicker than 14 AWG.

Thicker cable has lower electrical resistance and generally handles longer distances and heavier loads better.

A practical starting point for residential systems

For a relatively small LED installation, 14/2 direct-burial cable is often a useful general-purpose choice.

Move toward 12/2 cable when you have:

• Longer wire runs
• Larger lighting loads
• Numerous fixtures on one run
• Significant voltage drop

Do not select the cable based only on the total wattage of the entire transformer.

Calculate each individual cable run.

For example:

Run A: 22W / 45 ft

Run B: 15W / 70 ft

Run C: 15W / 35 ft

Run B deserves more attention than Run C because it has a longer distance even though they carry the same lighting load.

Manufacturers provide voltage-drop calculations and cable recommendations because cable length, conductor size and load all affect the voltage that eventually reaches the last fixture. (kichler.com)

Now comes one of the easiest ways to avoid having to redo your project:

Do not immediately bury the cable.

Lay the landscape cable on top of the ground following your planned route.

Leave extra cable at:

• The transformer
• Each fixture
• Corners
• Future junction points

Do not stretch the wire tight.

Landscape beds change. Plants grow. Fixtures may need repositioning.

A little extra cable gives you room to work later.

Avoid unnecessary obstacles

Whenever possible, route cable through planting beds rather than places where it might encounter:

• Future fence posts
• Landscape edging
• Irrigation work
• Tree roots
• Lawn aeration
• Frequent shovel work

Take a photo of your cable layout before burial.

A year later, when you decide to plant another shrub, you will be glad you know approximately where the wire is.

Before working on the low-voltage wiring:

Unplug or switch off the transformer.

Landscape lighting cable contains two conductors.

Separate the two conductors at the transformer end and strip only the amount of insulation specified by your transformer's terminal design.

Then insert the conductors into the appropriate low-voltage output terminals.

For a simple transformer, this may be:

COM + 12V

A multi-tap transformer may provide options such as:

COM + 12V
COM + 13V
COM + 14V
COM + 15V

Higher-voltage taps are not there to make the lights “brighter.”

They are primarily useful for compensating for voltage lost along longer or heavier-loaded cable runs. Multi-tap landscape transformers commonly provide this capability. (voltlighting.com)

For a small, short run, begin with the normal 12V output unless the transformer's instructions or your measurements indicate otherwise.

Now connect each fixture lead to the main landscape cable.

Imagine the main cable contains two conductors:

A —————————————
B —————————————

The fixture also contains two wires:

Fixture wire 1
Fixture wire 2

Connect:

Fixture wire 1 → Main cable A
Fixture wire 2 → Main cable B

Then continue the main cable toward the next fixture.

For typical AC low-voltage landscape lighting, polarity generally isn't the concern it would be in some DC systems, but always follow the specifications for your particular fixtures and transformer.

This is not the place to save a few dollars.

Connections are among the most vulnerable parts of an outdoor lighting system because they live in an environment containing:

• Water
• Soil
• Fertilizer
• Temperature changes
• Irrigation
• Condensation

Use connectors specifically designed and rated for outdoor direct-burial low-voltage connections.

Do not simply twist the wires together and wrap them with ordinary electrical tape.

Moisture entering a connection can eventually create corrosion and increased resistance, leading to unreliable lights and difficult-to-diagnose voltage problems. Proper direct-burial connections are specifically recommended for underground landscape-lighting wiring. (voltlighting.com)

After making a connection, gently pull on each wire.

If it moves, remake the connection before burying it.

Push or install each fixture stake according to the fixture instructions.

Avoid hammering directly on the fixture body.

In hard soil:

1. Loosen the ground first.
2. Make a pilot hole if necessary.
3. Insert the stake.
4. Firm the soil around it.

For spotlights

Aim approximately at the target, but leave the final adjustment for nighttime.

For path lights

Make sure the stem is vertical and the light head is level.

For well lights

Confirm that:

• Drainage is adequate
• The fixture isn't sitting in a location that remains submerged unless designed for it
• The lens won't be covered by mulch or soil
• Lawn equipment will not repeatedly strike the fixture

Now power the transformer.

Walk the entire system.

Every fixture should illuminate.

If one fixture doesn't:

1. Check its wire connection.
2. Confirm the lamp is properly seated if it uses a replaceable bulb.
3. Test the connector.
4. Inspect the cable between the working and non-working fixture.
5. Measure voltage if necessary.

If none of the lights work, start troubleshooting at the beginning of the system rather than replacing fixtures randomly:

Outlet → Transformer → Output terminals → Main cable → First connection → Fixtures

This is much faster.

For a very small system with short runs, everything may work immediately.

For longer runs, measuring voltage is worthwhile.

Set your multimeter to the appropriate AC voltage range if your transformer supplies AC output.

Measure at:

1. Transformer output
2. First fixture
3. Middle fixture
4. Last fixture

You might see something similar to:

Transformer: 12.2V
First fixture: 12.0V
Middle fixture: 11.7V
Last fixture: 11.3V

Some voltage reduction along a cable run is normal.

The important question is whether the voltage at each fixture remains within the operating range specified by the fixture manufacturer.

A voltmeter is especially useful on larger installations and long cable runs, and manufacturers recommend verifying actual voltage rather than relying exclusively on calculations. (kichler.com)

Do not immediately replace the fixture.

You may have excessive voltage drop.

Several solutions are available.

Option 1: Divide the run

Instead of:

Transformer → 10 fixtures → 120 ft

change it to:

Run A → 5 fixtures
Run B → 5 fixtures

This reduces the load and distance carried by each circuit.

Option 2: Use thicker cable

Moving from 16 AWG to 14 AWG, or from 14 AWG to 12 AWG, reduces cable resistance.

Option 3: Reconfigure the wiring

If the transformer feeds one end of a very long line of fixtures, consider feeding the system closer to its center.

Option 4: Use the appropriate higher-voltage tap

If your transformer provides 13V, 14V or 15V outputs, the appropriate tap can compensate for voltage lost along the cable.

But do not simply connect every run to the highest output.

Measure the voltage first.

The goal is correct voltage at the fixture, not maximum voltage leaving the transformer.

This is when the installation actually becomes a lighting design.

Wait until the yard is fully dark.

Then walk through the property again.

Adjust your spotlights

Move each beam slightly until the object looks natural.

For a tree, experiment with:

• Distance from trunk
• Beam angle
• Direction
• Whether you want to emphasize the trunk or canopy

Moving a spotlight only one or two feet can dramatically change the result.

Adjust your path lights

Look for:

• Dark gaps
• Excessive overlapping pools of light
• Bright spots
• Direct glare
• Fixtures that feel too evenly spaced

Look from inside the house too

Stand at your most-used windows.

A spotlight that looks perfect from the yard may shine directly into a bedroom or living-room window.

Only after the system has been fully tested should you bury the cable.

Create a narrow trench along the cable route.

For landscape beds, lift the soil or mulch carefully, place the cable below the surface according to applicable instructions and local requirements, then cover it.

Do not bury:

• Loose, unfinished connections
• Connections you haven't tested
• Excessively tight cable
• Cable where future edging or digging is likely to cut it

Local requirements can vary, so follow the cable manufacturer's installation instructions and applicable local rules for underground low-voltage wiring.

After burial, photograph the final cable routes and save the pictures.

Depending on your transformer, the lights may be controlled by:

• Manual timer
• Photocell
• Astronomical timer
• Sunrise/sunset scheduling
• Smart app control

A simple schedule might be:

Sunset → Lights ON

11:30 PM → Lights OFF

This gives you landscape lighting during the hours you actually use the property without unnecessarily operating it all night.

Let's put everything together.

A homeowner wants:

4 × 5W spotlights for trees and the house
6 × 3W path lights for the walkway

The installation is complete.

1. Buying the transformer before calculating the load

Count watts, not just fixtures.

2. Putting the entire yard on one long cable run

Several shorter runs are usually easier to manage than one heavily loaded run.

3. Using undersized cable on a long run

Longer distance + higher wattage = greater potential voltage drop.

4. Using indoor-style wire connections underground

Use waterproof direct-burial connectors.

5. Burying the cable before testing

Test everything first.

This one habit can save you from digging the same trench twice.

6. Aiming spotlights during daylight only

Always perform your final aiming after dark.

7. Trying to make the yard as bright as possible

Good landscape lighting is about contrast, direction and depth—not maximum brightness.

One advantage of a properly planned low-voltage system is that it can grow with your landscape.

Suppose your original installation uses:

38W

and later you want to add:

4 × 5W lights = 20W

Your new total becomes:

58W

If your transformer and wiring have adequate capacity, adding another lighting zone can be relatively straightforward.

Before expanding:

1. Recalculate total transformer load.
2. Calculate the load on the specific cable run.
3. Consider starting a new cable run instead of extending an already long one.
4. Check voltage at the new farthest fixture.
5. Confirm all components remain within their specified ratings.

Planning some spare transformer capacity during the first installation makes this much easier.

• ✓ All fixtures are designed for low-voltage landscape lighting
• ✓ Transformer capacity exceeds the planned lighting load
• ✓ Outdoor power connection is appropriate for the transformer
• ✓ Cable is rated for direct burial
• ✓ Cable gauge is suitable for each run
• ✓ Multiple zones/runs are used where appropriate
• ✓ Every underground splice uses a waterproof direct-burial connector
• ✓ All fixtures have been tested before cable burial
• ✓ Voltage has been checked on long or heavily loaded runs
• ✓ Spotlights don't create direct glare
• ✓ Path lights don't create an “airport runway” appearance
• ✓ Cable routes have been photographed before burial
• ✓ Timer, photocell, or smart scheduling has been configured

You do not need to be a professional landscape-lighting installer to build a good residential low-voltage system.

The key is not rushing the installation.

Plan the fixtures first. Calculate the load. Divide the property into sensible cable runs. Use the correct cable and waterproof connections. Test everything above ground. Then make your final lighting adjustments after dark.

When those steps are done correctly, the installation itself becomes relatively straightforward—and the system remains much easier to troubleshoot or expand in the future.
